Van Tubes
Couldn't load pickup availability
Van Tubes — Unlock Rear-Door Loading Power

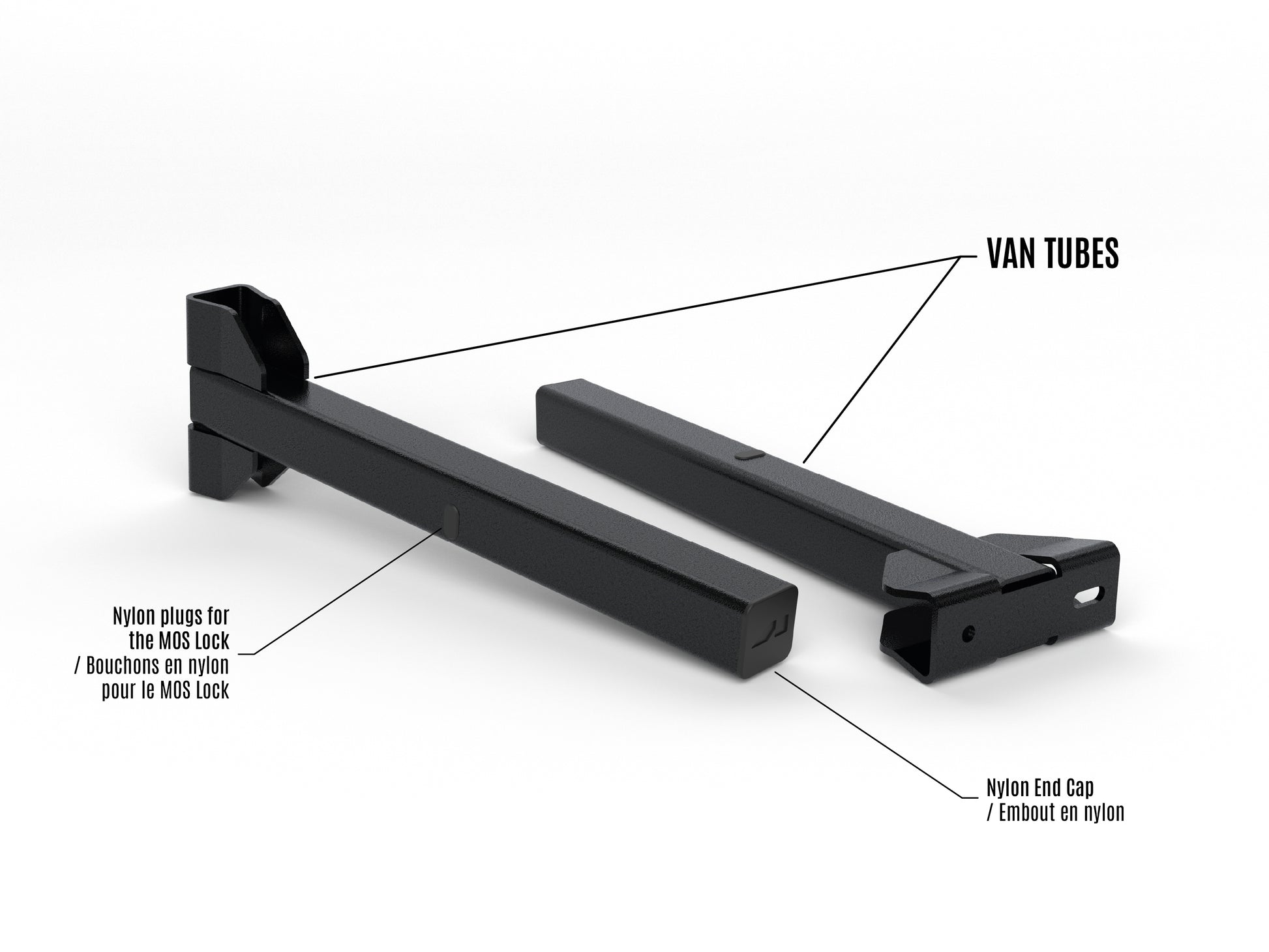

The Van Tubes are a set of arms that serve two purposes: they can be used on their own as rear-door rack arm-adapters for mounting common bike racks, or as the adapter that allows the MOS UpLift™ system to be installed on a van’s rear door rack.
When paired with the MOS UpLift™, they transform a standard rear door rack into a lift-assisted system that makes loading and unloading one or two bikes — including heavy e-bikes — smooth, ergonomic, and accessible directly from the back of the vehicle. Never exceed the 200 lb (90,72 kg) capacity of the Van Tubes, the 125 lb (56 kg) load capacity of the MOS UpLift™, nor the load limits of your bike rack and rear door rack.
Designed for van-life enthusiasts, overlanders, and adventurers, the Van Tubes maximize carrying capacity without compromising door access. Engineered to fit most rear-door racks, they feature carefully positioned mounting holes to ensure wide compatibility.
Features and Technical Data
-
Loading capacity: 200 lb (90,72 kg)
-
Requirements: The Van Tubes have to be installed on heavy-duty rear door carrier with a minimum load capacity of 100 lb (45 kg).
Never exceed the 200 lb (90,72 kg) capacity of the Van Tubes, the 125 lb (56 kg) load capacity of the MOS UpLift™, nor the load limits of your bike rack and rear door rack. - Product dimensions: 21''x 6''x 2'' (53cm x 15cm x 6cm)
- Packaging dimensions : 42″ × 6″ × 11″ (107 cm x 15 cm x 28 cm)
- Product Weight: 5 lb (2kg) (for 2 Tubes)
-
Structure height with MOS UpLift™: 31″ (79 cm)
- Arms Adjustable Width: Depends on the width of the rear door rack. Minimum 20″ (51 cm) required
- Locking system: Sold separately
- MOS UpLift™: Sold separately
- Warranty : 2 years
Material & Finish
- Powder-coated aluminium structural parts,
Stainless steel hardware - Color: Matte Black
UPC: 628942224300
Share
Product specifications
Compatibility
The MOS UpLift™ is compatible with round, square, oval, and most factory/aftermarket crossbars.
Load capacity
125 lbs (56 kg)
Care instructions
• Avoid storing your MOS UpLift™ and its accessories where it is exposed to sunlight, extreme or changing temperatures andhumidity.
• Do not lubricate the wrenches and bolts. Do not use thinner or solvents as they may damage the MOS UpLift™.
• When necessary, clean the dirt with fresh water and a soft cloth. If the dirt does not come off with fresh water, use only mild cleaners to ensure proper operation and increased safety, as well as to increase its durability. Never use abrasive cleaners, salt, lubricants, or any other product or liquid (other than water and mild cleaners) on the MOS UpLift™.
• If you are using the MOS UpLift™ in the winter, be sure to completely clear the snow, ice and calcium residues from your MOS UpLift™.
• When installing the MOS UpLift™, apply antiseize to all stainless steel hardware to prevent seizure. The antiseize is included in the package. Perform regular inspection on the MOS UpLift™ parts, load carriers, and roof accessories to ensure that they are free of defects, breakage, or signs of wear.
•If you find any parts of the MOS UpLift™ bent, worn, or damaged, stop using the MOS UpLift™ immediately and replace the parts by contacting our customer service department by email at support@mosracks.com.
Product Guide
Want to know more about our products?
MOS UpLift™ product guide here
- Consult the MOS UpLift™ product guide.
- The MOS UpLift™ : J-Extension product guide.
